L&P Architects 中瑞總部大廈喜獲2019意大利 A‘ Design Award 銀獎！
日期：2019-05-31

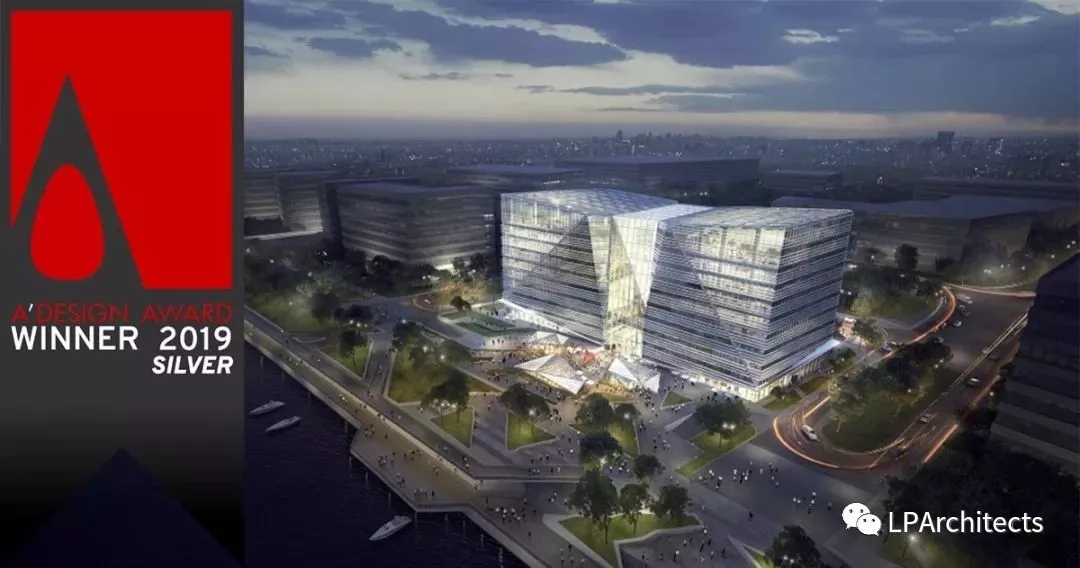

L&P Architects’ Zhengzhou Zhongrui Headquarter has won a Silver award in the Architecture, Building and Structure Design category of A’ Design Award 2019.
憑借鄭州中瑞總部辦公項目, L&P Architects喜獲2019年度意大利 A’ Design Award 建筑及結構設計類別銀獎。
Project Background 項目背景

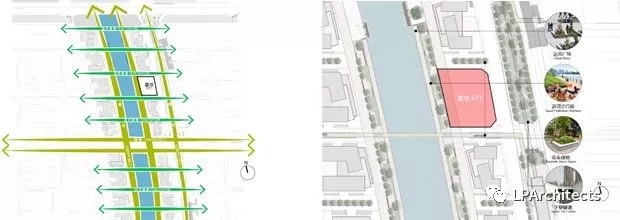

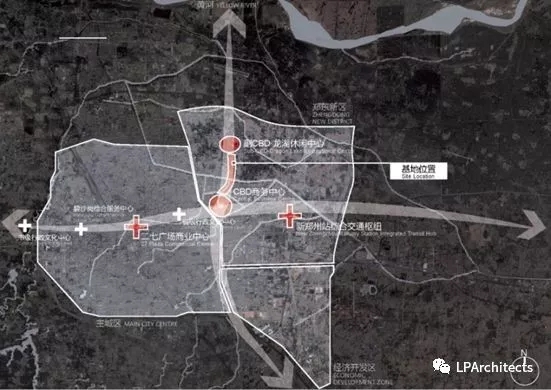

Location 項目區位
The project is a financial office building locates in the central area of New East District, Zhengzhou City, Henan Province. It is 3.5 km away from the CBD center of Zhengzhou and 1.5 km from the sub CBD of North Longhu. The site is sitting between the city main road and the waterfront of Ruyi River, enjoying better land values and views.
項目位于河南省鄭州市鄭東新區中心區域，功能以高端金融辦公為主。場地地理位置優越，距離鄭州CBD中心約3.5公里，距離北龍湖CBD副中心約1.5公里。基地東側緊鄰城市主干道路，西側面向城市級別如意河濱水開放空間，基地景觀資源及交通接駁條件良好。
Inspiration 設計理念
Martin Heidegger: Dwelling is not primary inhabiting but taking care of and creating that space within which something comes into its own and flourishes. The design aims to solve the contradiction between public and private, office and entertainment, provides the city a new leisure destination.
海德格爾說：人應詩意地棲居在大地上。辦公空間不應只是一個沉悶，封閉，索然無味的工作環境。項目設計的宗旨在于如何解決開放與私密，辦公與休閑空間屬性之間的矛盾，從而為城市提供一片棲息地。

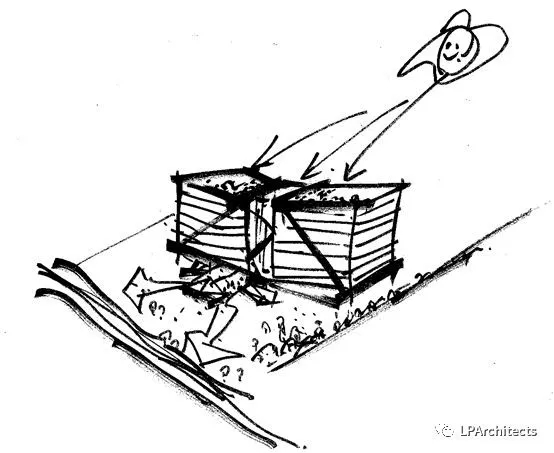

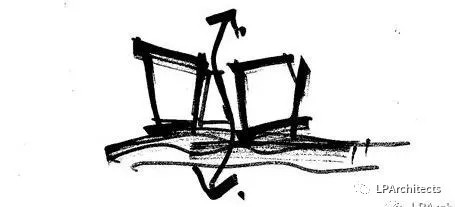

Inspiration Sketch 初步構思草圖

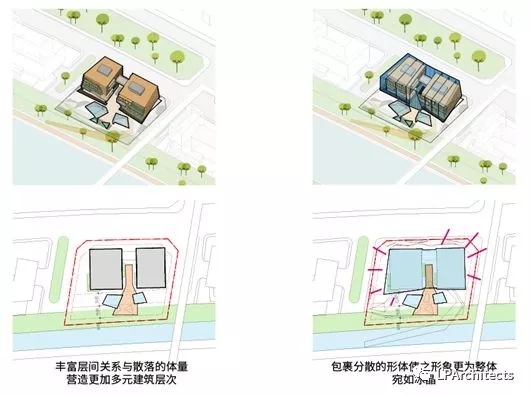

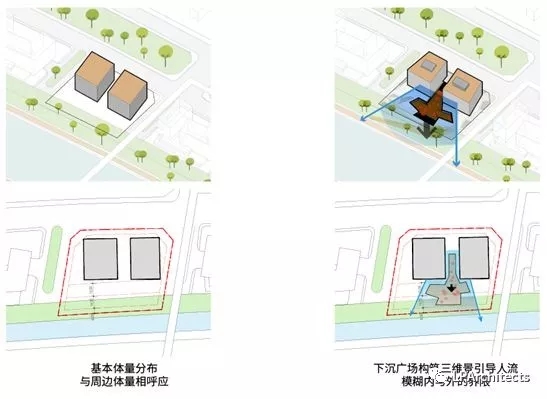

Built-up Concept 概念生成
The design adopts the concept of ‘Ice Crystal’, the two towers are wrapped up by shining glass walls fa?ade, making the project looks like a single building from the exterior.
在保證避免直視的距離前提下，落入兩座塔樓；拉長沿河面辦公體量，使得沿河景觀面資源最大化；落入景觀，營造多元建筑層次；通過外幕墻將原有兩棟辦公體量包裹，形成沿河一塊巨大的 “冰晶”形象。
Form Generation 建筑形態

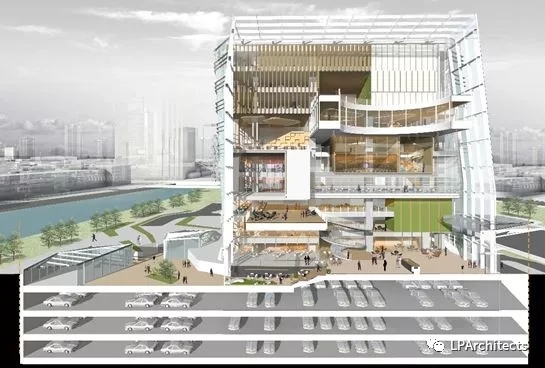

Function units are allocated to two towers, with a 10/F public sunshine atrium sitting in the middle, while all are wrapped by a diamond-shaped curtain wall. The glass atrium introduces natural sunlight to the interiors, hence, connecting with the waterfront and the city roads, and will provide a huge public area for all sorts of activities. Offices and related function units such as stores, canteen, conference center, and activity rooms are placed in the two towers which have access control to guarantee privacy. Platforms have been hanged in the atrium keeping communications between two towers.
通過鉆石造型的玻璃幕墻，將原有兩個不同功能屬性的兩棟辦公塔樓包裹起來，中間加入一個10層通高的陽光景觀生態中庭，即區隔又融合原有兩棟辦公塔樓空間。巨大的綠色生態景觀中庭，連通西側濱水空間和東側城市干道，可用來舉辦各種公共活動。通過玻璃幕墻將自然光引入生態中庭，使室內空間也有宛如室外空間的感受。合理，緊湊的將辦公功和相關輔助空間（如商店，食堂，會議中心，活動室）分布在兩個塔樓中。兩棟塔樓均設有安保系統，以保證辦公空間的私密性。懸掛在中庭的空中交流共享平臺，用于確保兩棟分離的塔樓空間之間的必然交通聯系。
Fa?ade Design 立面設計
Crystal concept 冰晶概念草圖
Oblique lines and angular surfaces dominate the fa?ade with glass curtain walls. The design stays in line with the ice crystal sitting by the waterfront concept, presenting the global vision of the corporate.
建筑立面幕墻系統，由斜線及斜面構成。立面材料以通透的玻璃幕墻為主，塑造簡潔、利落、剔透的建筑形象。企業總部大樓以冰晶般的建筑形象矗立在如意河邊，展現企業積極進取的文化態度和放眼世界的開闊胸懷。

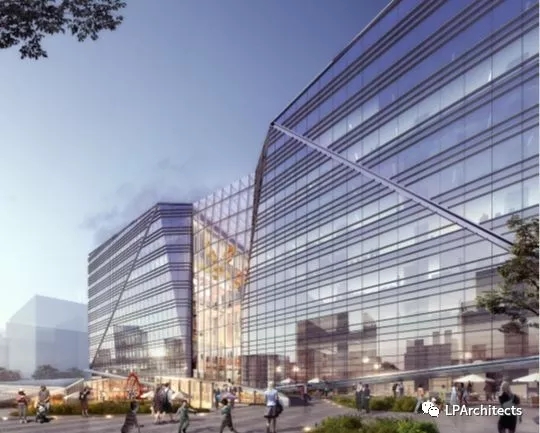

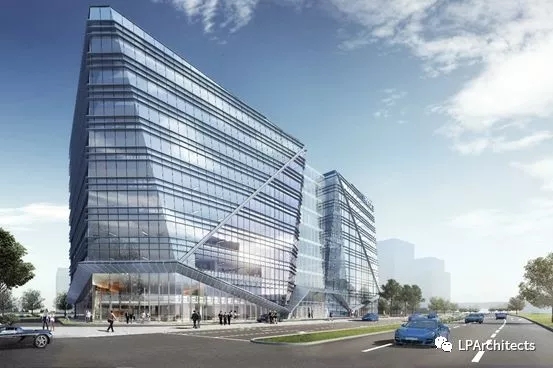

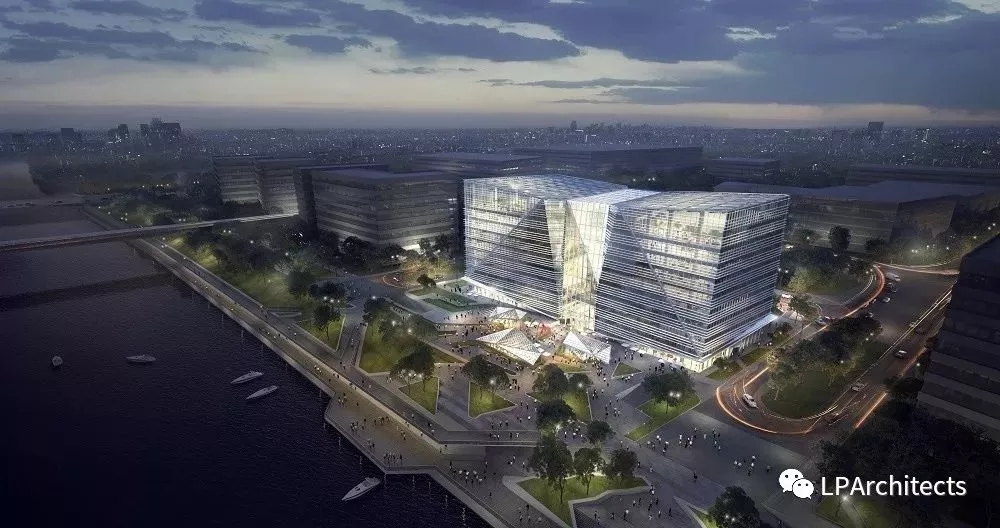

Exterior fa?ade 室外立面
Approach 空間序列

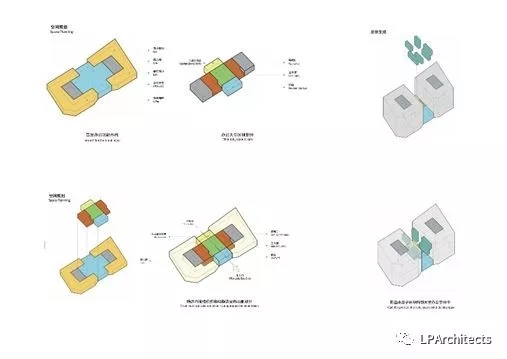

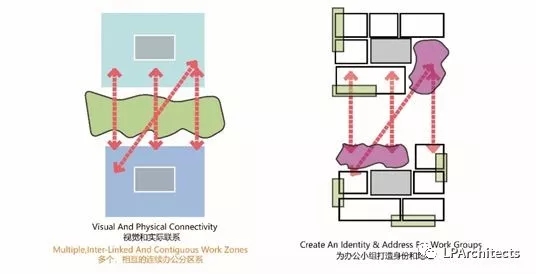

workplace spatial concept evolution 辦公空間概念演變
The Challenge 創造及挑戰
This is an innovated office design, there is a huge sunshine atrium which is opened to public and connecting with its surrounding, providing the user a more user friendly working environment. Most of the common areas of the atrium are separated by fireproof glass, firewall and fire shutter.
巨大的日光生態景觀中庭，以城市客廳的形式對公眾開放，聯系周邊環境。旨在為企業量身定制一個的專屬共享空間環境場所，定義下一代辦公空間場所，引領未來辦公空間演變趨勢。為了建立這樣的共享空間，中庭內大多數共享空間都才用防火玻璃，每一層都劃分各自獨立的防火分區，防火分區之間通過防火墻、防火卷簾隔開，最大限度地保證和提升共享空間的開放性和流動性。
Sunshine atrium 景觀生態日光中庭
Landscape Design 景觀設計
The landscape scheme applies to both the west side waterfront and the sunshine atrium, together forming a wonderful public area for the users.
景觀空間的營造理念，充分融合和延續城市設計和建筑設計理念，將西側濱水城市開放空間的景觀資源與日光生態綠色中庭相結合，整體打造城市，建筑，景觀空間一體化的新一代公共場所。

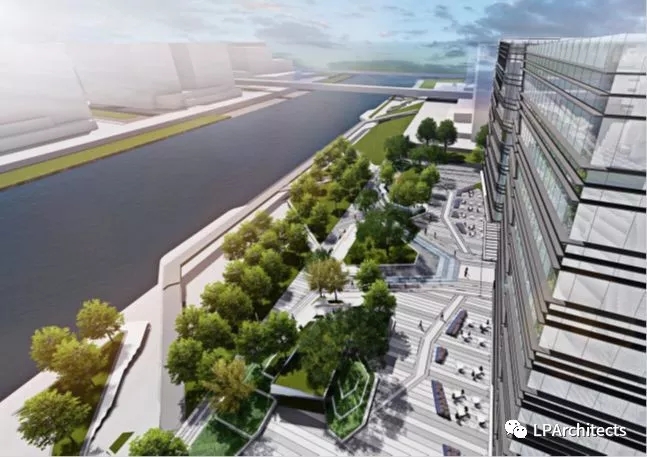

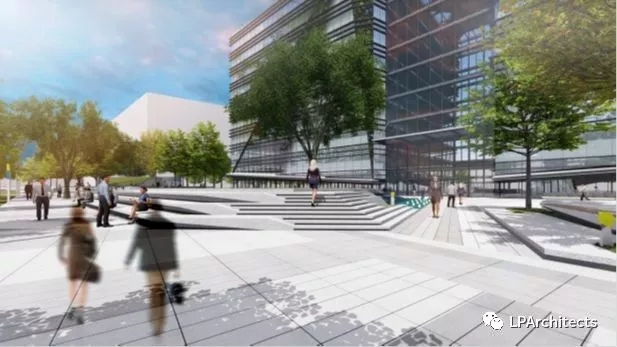

Waterfront landscape (source: Ecoland) 濱水空間景觀空間（來源：Ecoland）
Interior Design 室內設計
Architectural scheme are integrated to the interior space design of Zhongrui Building.The huge atrium introduces natural sunlight to the interiors, breaking the boring borders and creating a harmony and interesting spacing for the users.
中瑞大廈的室內空間設計作為城市空間和室外建筑空間的延續，圍繞室內辦公空間的秩序與復雜性展開設計。將室內空間場景室外化，日光生態綠色中庭概念需要一個通高的中庭共享空間作為一個載體。自然光的引入，為室內空間增加無限的可能性，給人更多的聯想空間，激發辦公場所使用者的創造性。室內設計的核心關注點在于如何打破客觀條件對于空間的限制，運用理性打破平庸，重新建立一個極具趣味的時空。
Interior concept evolution 室內概念演化

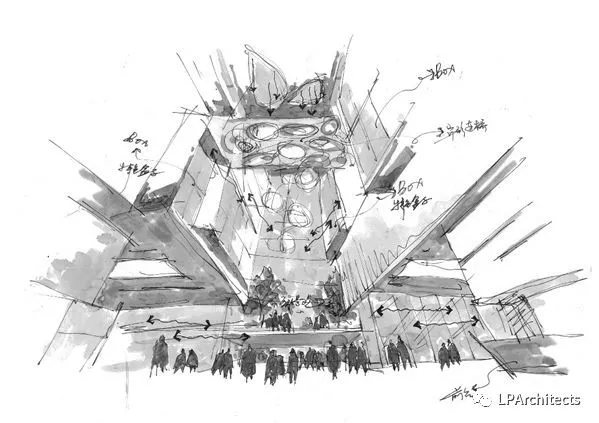

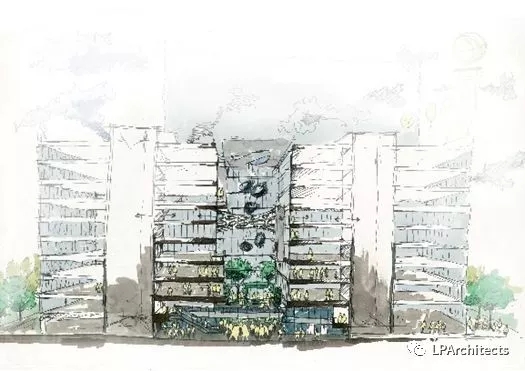

Concept sketch of green & sunshine atrium 日光中庭概念草圖
The innovated design offers end users an effective and eco-friendly working environment. The platforms hang at the 2nd floor and 7th floor providing users spaces for social and relax.
簡潔而大膽的室內設計既為高效、活躍且綠色生態的辦公環境提供了可能性，又為鄭東新區打造了一個極具個性特征、積極開放的城市地標空間。二層以及七層的有機連接，為人們提供駐足，休憩的中庭共享空間。

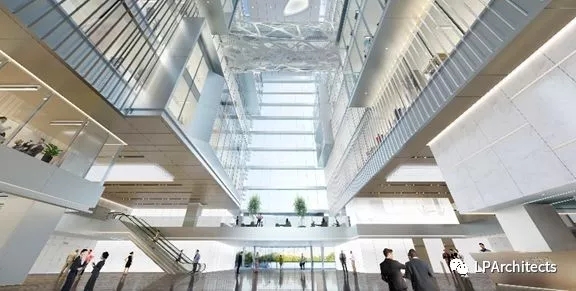

Green & sunshine atrium 生態綠色日光中庭
Entrance lobby 入口大堂
Signage guidance 標識引導

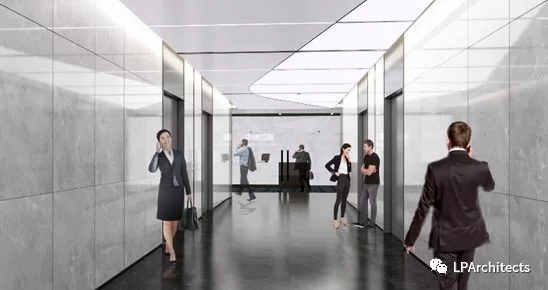

Ground floor lift lobby 首層電梯廳

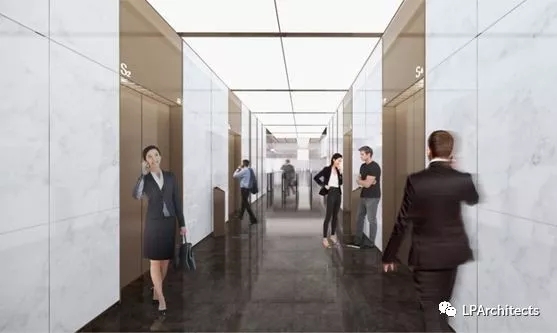

Typical lift lobby 標準層電梯廳
Project Duration 項目工期
The project was started in April 2018 and is under Detail Design Stage. It will be opened in November 2021 in Zhengzhou, China.
現處于施工圖設計階段，計劃于2021年11月落成。
Project Information 項目信息
Project name: Zhengzhou Zhongrui Headquarters
Project Type: Workplace
Project location: Zhengzhou, Henan, PRC
Site area: 39,798㎡
Interior design area: 3,050㎡
Height: 45m
Stories: 10 floors (above ground), 3 floors (basement)
項目名稱：鄭州中瑞總部辦公項目
項目類型：辦公
項目地點：中國，河南鄭州
地上建筑面積：39,798㎡
室內設計面積：3,050㎡
建筑高度：45m
層數：地上10層，地下3層
Project Team 項目團隊
Architectural, Interior & Overall Design Lead: L&P Architects
Design Director: Gang Li
Architectural Design Team: Chen Zhao, Ruoyu Guan, Haotin Lin, Zhihao Li, Jiong Lin, Huhui Yao
Interior Design Team: Chen Zhao, Daochao Qian, Hamp Mao, Min Huang, Xiuyun Jia
Construction Drawing: China Southwest Architectural Design & Research Institute
Fa?ade Consultant: CEC
Landscape Design: Ecoland
Lighting Design: CCW Design Consultant (Shanghai)
Transportation Consultant: AECOM
建筑及室內設計&設計總控：L&P Architects
設計董事：李鋼
建筑設計團隊：趙晨，關若愚，林昊天，李致昊，林炯，姚旭輝
室內設計團隊：趙晨，錢大潮，毛華璞，黃敏，賈岫云
施工圖設計：中國建筑西南設計研究院
幕墻顧問：希繹希工程（CEC）
景觀設計：易蘭景觀設計
燈光設計：上海CCW設計顧問
交通顧問：AECOM
